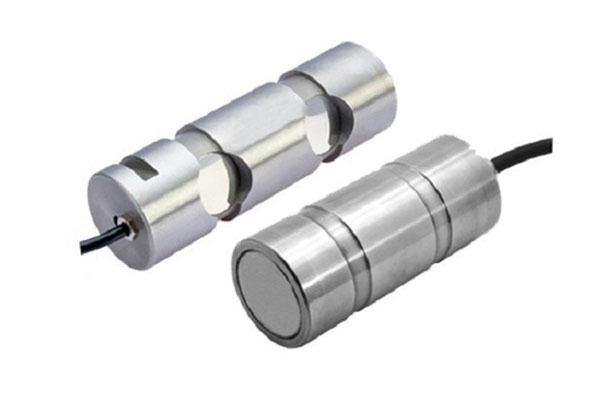

The pin type load Cell is mainly for use in Crane weighing systems or in general where the load applied on a pin needs to be measured. The pins are mounted on machines in place of normal shafts and fitted with strain gauges allowing them to produce a signal proportional to the measured load. The Load Pin has a highly secure and stable steel structure and is made of High Alloy Steel for resistance against shock and overload.
| Load Capacity | 2T to 50T |
|---|---|
| Type | Compression |
| Usage/Application | Crane weighing system,EOT Crane |
| Shape | Round |
| Design | Robust |
| Material | High Alloy Steel |
| Rated Output | 2 mV/V |
| Safe Overload Of Related Capacity | 150%FS |
| Ultimate Overload Of Rated Capacity | 200%FS |
| Hysteresis | < 0.03%FS |
Compact and Versatile Design: Designed with a compact form factor, the pin type load cell can be easily integrated into various systems and applications. Its versatile design allows for seamless installation in tight spaces or within existing machinery, maximizing efficiency and space utilization.
High-precision Strain Gauge Technology: Embedded with advanced strain gauges, the load cell accurately detects even the slightest changes in compressive forces applied to the pin. This cutting-edge technology ensures precise measurements with minimal error, providing confidence in data accuracy.
Wide Range of Capacities: Available in a variety of load capacities to suit diverse application requirements, ranging from light compression monitoring to heavy-duty material handling operations. Custom options may also be available upon request to meet specific customer needs.
High Accuracy and Resolution: With exceptional sensitivity and resolution, this load cell delivers precise measurements, enabling accurate monitoring and control of compressive forces. Whether for load monitoring in material handling systems or force measurement in machinery, this load cell ensures reliable performance.
Rugged Construction for Harsh Environments: Crafted from high-quality materials such as stainless steel or alloy steel, the load cell is built to withstand the rigors of industrial environments. Its robust construction ensures durability and reliability, even in challenging conditions.
Easy Installation and Maintenance: Designed for straightforward installation and maintenance, the load cell features standard mounting options and simple wiring connections. Its user-friendly design minimizes downtime and ensures hassle-free operation throughout its lifespan.
Calibration and Certification: Each load cell undergoes rigorous calibration procedures to guarantee accuracy and reliability. Additionally, it may come with certifications to comply with industry standards and regulations, providing assurance of quality and performance.
