| Type | Stroke Length mm | Max. Pull (Continuous Duty) Kg. | Cat. No. | ||||||||
| B | 25 | 1.25 | VLB- | ||||||||
| D | 31.4 | 6.75 | VLD- | ||||||||

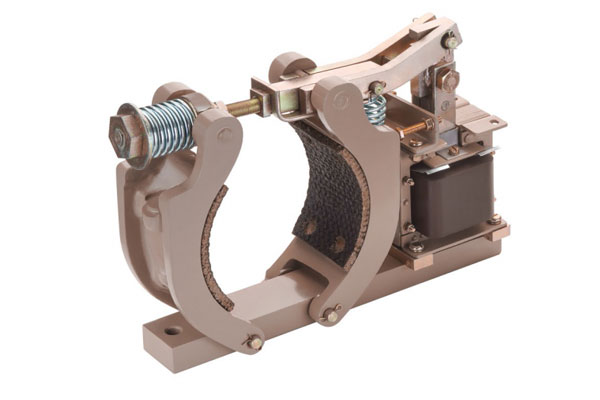

| Type of Brake | Wheel Inch | Max. Torque | Duty | Cat No. | Cat. No. | |||||
| Inch | MM | Lb. ft. | Nm | |||||||
| V-4 | 4 | 101.6 | 10 | 13.6 | Continuous | S-42* | AC50D4 | |||
| V-5 | 5.5 | 139.7 | 25 35 | 34.0 48.0 | Continuous Intermittent | S-51 S-52 | AC50D5 | |||
| V-7 | 7 | 177.8 | 50 75 | 68.0 102.0 | Continuous Intermittent | S-71 S-72 S-51 S-52 | AC50D7 | |||
| V-250 | 9.84 | 250 | 109 | 147 | Continuous | S-2501* | – | ||||||||
| Brand | Vraj Engineering |
|---|---|
| Frequency | 50Hz |
| Input Voltage | 110,220 & 415 V 50 Hz. AC |
| Phase | 3 |
| Size/Dimension | 4″,5.5″ & 7″ |
| Type | VLB & VLD |
| Insulation Type | F |
| Country of Origin | Made in India |
